Samsung Spinpoint F2EG HD154UI 1.5TB

Posted by | Posted in HDD | Posted on 2015-03-04


Samsung Electronis sold its hard disk drive business to Seagate Technology for approximately US$1.4 billion in April 2011.

This HDD can be changed to SATA-1 or SATA-2 mode by ESTool, the utility for Samsung hard disk drives.

Samsung HD154UI 1.5GB

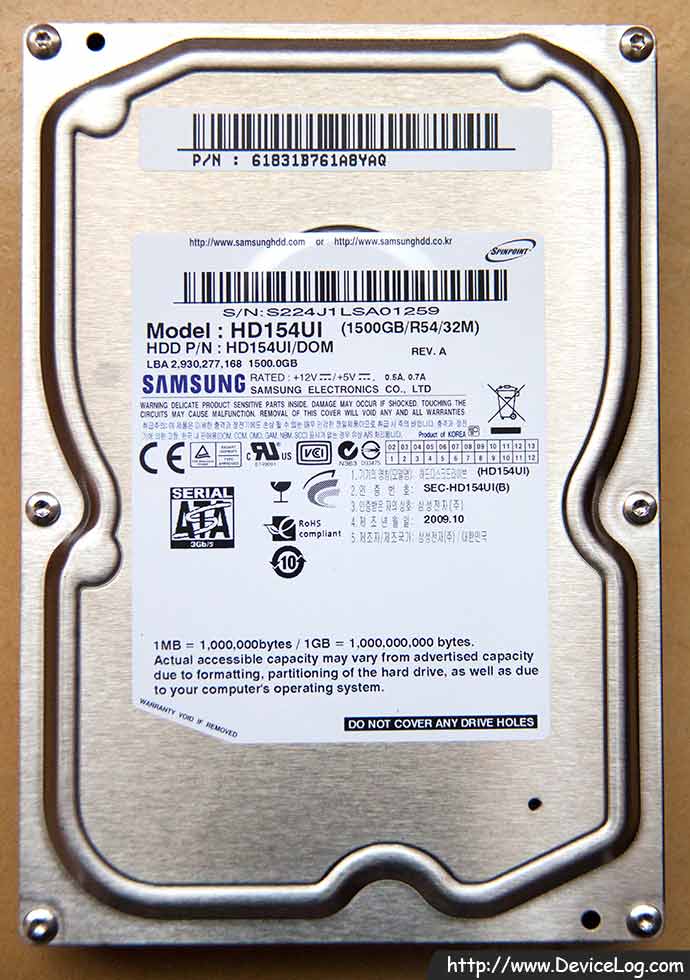

Product name Samsung Spinpont F2EG HD154UI 1.5TB
Manufacturer Samsung Electronics
Country of manufacture Korea
Build year/month 2009/10
Interface SATA 2 (3Gbits/s)
Disk Capacity 1.5TB (1500GB)
Buffer Capacity 32MB
Bytes per Sector 512Bytes
Rotational Speed 5400RPM
Form Factor 3.5inch
(width × length × height)
101.5 × 147.0 × 26.1mm
Weight 650g
Number of Disk 3
Number of Heads 6
Voltage 5V(±5%), 12V(±10%)
Spin Up Current (Max) 2.0A
Temperature Range Operating : 0°C ~ 60°C
Non-operating : -40°C ~ 70°C
Linear Shock
(1/2 sine pulse)
Operating : 70G
Non-operating : 300G
(relative to sea level)
Operating : -300 to 3,000 m
Non-operating : -300 to 12,000 m
Power consumption Idle : 5.1W
Seek : 5.7W
Read/Write : 6.3W
Standby : 1W
Sleep : 1W
Noise Idle 25dB / Seek 28dB
Non-recoverable Read Error
1 sector in 10¹⁵bits
Start/Stop Cycles 50,000
