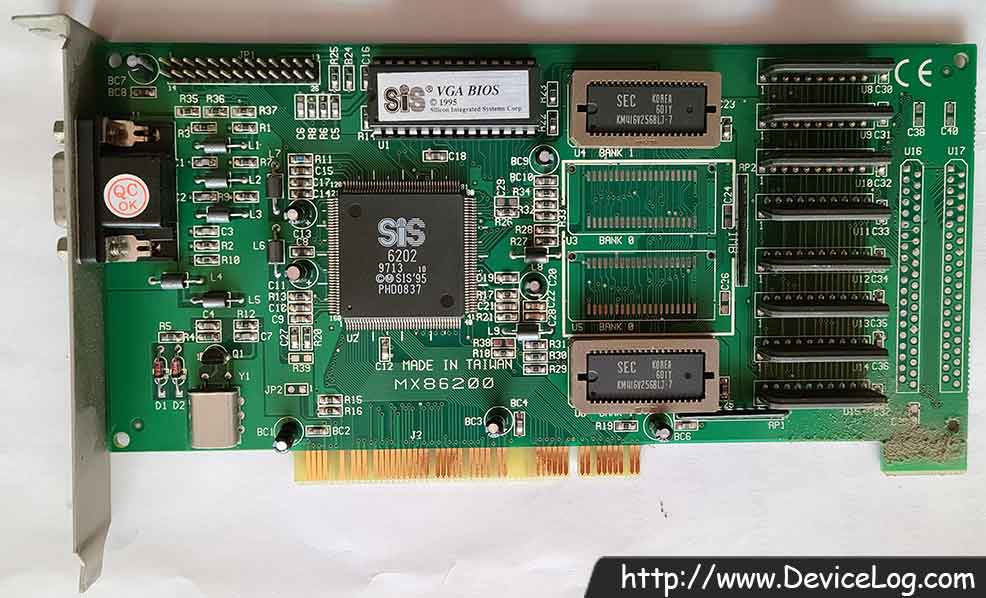

Macronix MX86200 - SiS 6202



Type Video Graphics Adapter (VGA)
Product Name MX86200
Chipset Manufacturer SiS
Chipset/GPU Model SiS 6202
Chipset Build Year/Week 1997 / 13
Distributor Macronix
Country of Manufacture Taiwan
Video RAM Manufacturer Samsung Electronics Co., Ltd.
Video RAM Composition (KM416V256BLJ-7) × 2
Available
Video RAM Composition
1,2, or 4 MBytes display memory
Slot Interface PCI
Suppoted Resolution 1600×1200, 64K colors @ 60 Hz
1280×1024, 64K color @ 75 Hz
1024×768, 16M color @ 60 Hz
GPU Chip Features • High Performance Architecture
• True 64-bit graphics engine.
• True 8/16/32 bpp acceleration.
• BitBLT, rectangle, pattern fill, line draw, colorexpansion and complete 256 ROP
• On-chip pattern memory
• Multiple advanced FIFOs
• Memory-mapped I/O
• 64x64x2 bit-mapped hardware cursorHigh-quality Video Playback
• Support primary surface DCI drivers for smooth andhigh quality video playback
• Support Microsoft Video For Windows• Advanced Memory Control
• True 64-bit display memory access
• 256K x 4, 256K x 8, and 256K x 16 dual CAS or dualWE DRAM
• Fast-page and Hyper-page EDO
• Auto memory size detection
• Linear addressing modes up to 4 MByte

• Glueless PCI bus interface
• Full PCI 2.1 compliance
• Integrated RA MDAC
• Integrated programmable 135 MHz clock synthesize
• Low-Power sub-micron CMOS
• 208 pin PQFP

• Plug and Play compliant
• VESA Display Data Channel (DDC2B) protocolsupport
• VESA standard Feature Connector support
• DPMS and advanced power management support

Video Connector D-Sub
(15-pin VGA connector)
