HIS Radeon RX560 14CU GREEN iCooler OC GDDR5 2GB
Posted by DeviceLog.com | Posted in PCI Express | Posted on 2022-12-25
0
| Product Name | HIS Radeon RX560 14CU GREEN iCooler OC D5 2GB |
|---|---|
| Product Code | HS-560J2SCNR |
| EAN Code | 489 51390 12361 |
| Realease Date | 2016.8.8. |
| Chipset Manufacturer | AMD(ATi) |
| Board Manufacturer | Hightech Informaion System Ltd. (HIS) |
| Country of Manufacture | China |
| Memory Manufacturer | Elpida Memory, Inc. |
| Chipset/GPU Model | AMD Radeon RX 560 Series AMD Radeon HD 560 |
| GPU Code name | Baffin (Polaris 11) |
| GPU Revision | CF |
| GPU Technology | 14nm |
| GPU Die Size | 123mm² |
| GPU Subvendor | ATI AIB |
| GPU Clock | Base : 1145Mhz OC : 1196Mhz Boost : 1176 MHz |
| Stream Processors (Compute Units) |
896 (14CU) |
| Video RAM Type | GDDR5 |
| Video RAM Size | 2048MB (2GB) |
| Video RAM Clock | 1500Mhz |
| Bus Interface | PCI Express 3.0 x 8 |
| Bus Width | 128bit |
| Bus Speed | 7.0Gbps (112GB/s) |
| Computing Technologies | OpenGL, DirectCompute, DirectML, Vulkan |
| Power Consumption | Max. 46W |
| Recommended Power Supply | 400W+ |

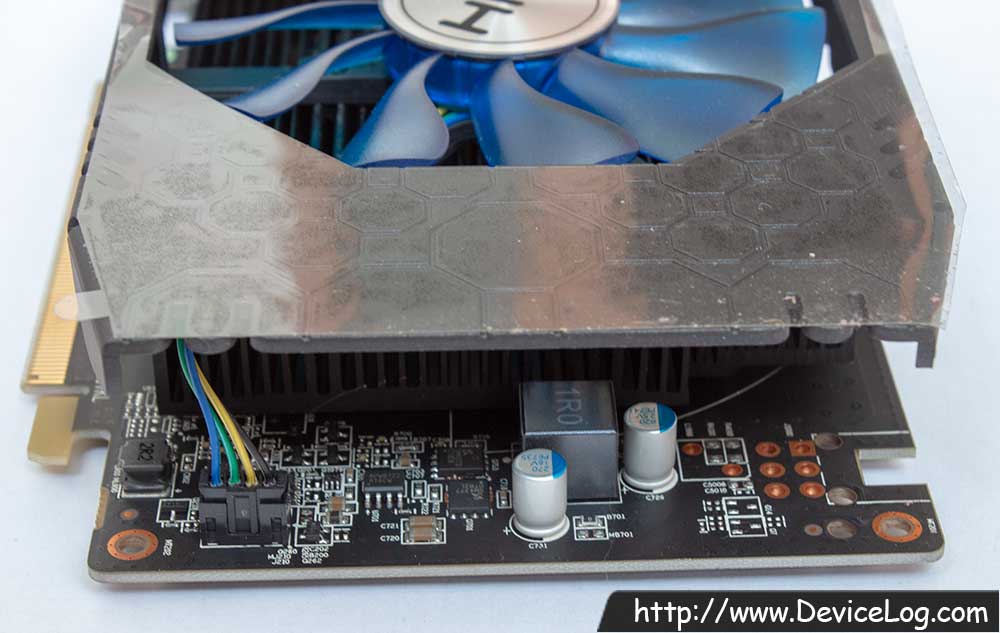

| Cooler | iCooler ( Two Slot 0dB , 11 x Fan-blades) |

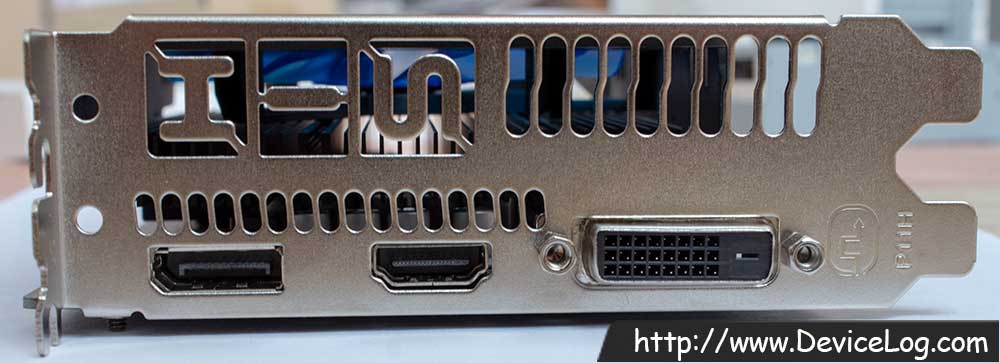

| Video Connectors | DVI × 1 HDMI × 1 DisplayPort(DP) × 1 |
| Maximum Resolution (per Display) |
DP 1.4 : 5120 × 2880 @ 60Hz HDMI 2.0b : 4096 × 2160 @ 60Hz Dual-Link DVI-D Port : 2560 × 1600 @ 60Hz |
| Features | • Zero Fan Function • Width: 170mm • Height: 35mm |
