Samsung 4GB PC3-10600 DDR3 SDRAM SO-DIMM

Gi-post ni DeviceLog.com | Gi-post sa DDR3 SDRAM | Gi-post sa 2015-03-02

3

Samsung Electronics released DDR3 SDRAM modules using the 30nm process technology in July 2010. This RAM module was made by the 40nm process technology.

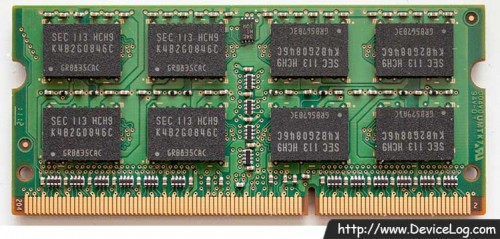

Samsung SODIMM DDR3 PC3-10600 4GB frontside Samsung SODIMM DDR3 PC3-10600 4GB rearside

Ngalan sa produkto Samsung DDR3 SDRAM PC3-10600 4GB SO-DIMM
(2Rx8, PC3-10600S-09-10-F2, M471B5273CH0-CH9)
Manufacturer Samsung Electronics (GIPADAYAG ni SEC)
Nasud sa paghimo China
Pagtukod tuig/semana 2011/13
Kapasidad sa Data 4GB
Katulin sa orasan 1333Mhz (PC3-10600)
Timing sa Memorya CL=9, tRCD=9, tRP=9
Mga bahin 204pin, SODIMM, Unbuffer Non-ECC DDR3 SDRAM
Teknolohiya sa proseso sa produksiyon 40nm
Mga tipik sa datos x64
Internal nga Module nga mga bangko 8
Mga ranggo 2
Komposisyon sa data chip 256M x 8 * 16 mga pcs
Pagbag-o sa sangkap 2Gb, C-die
Pakete 78 ball FBGA
Taas 30mm
VDD boltahe 1.5V
Sakup sa Temperatura sa Operating Case 0°C ~ 85°C
