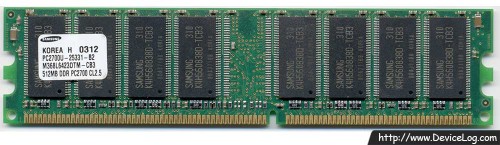

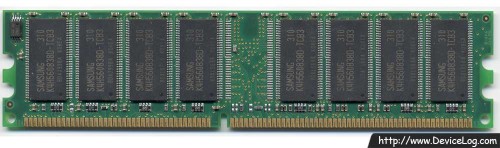

Samsung 512MB PC2700 DDR SDRAM DIMM (M368L6423DTM)

Dikirim dening Piranti Login.com | Dikirim ing DDR SDRAM | Dikirim ing 2015-03-03

0

The M368L6423DTM is 32M bit x 64 Double Data Rate(DDR) SDRAM high density memory module based on fifth genernation of 256Mb DDR SDRAM respectively. The M368L6423DTM consists of sixteen CMOS 32M x 8 bit with 4banks Double Data Rate SDRAMs in 66pin TSOP-II(400mil) packages mounted on a 184pin glass-epoxy substrate. Four 0.1uF decoupling capacitors are mounted on the printed circuit board in parallel for each DDR SDRAM. The M368L6423DTM Dual In-line Memory Module and is intended for mounting into 184pin edge connector sockets.

Samsung DDR SDRAM 256MB PC2700 DIMM (M368L6423DTM) Samsung DDR SDRAM 256MB PC2700 DIMM (M368L6423DTM)

Jeneng produk Samsung DDR SDRAM PC2700 512MB DIMM
(PC2700U-25331B2, M368L6423DTM)
Produsen Samsung Electronics
Negara pabrik Korea
Mbangun taun / minggu 2003/12
Kapasitas Data 512MB
Kacepetan jam 166Mhz (PC2700, DDR333)
Wektu Memori CL=2.5
Fitur 184jiwit, DIMM, Unbuffer Non-ECC DDR SDRAM
Ukuran 133.35mm × 31.75mm
Bit data 64dicokot
Bank Modul Internal 4
Komposisi chip data K4H560838D-TCB3 × 16
(32M × 8bit × 16chips)
Paket TSOP-II
Tegangan VDD 2.5V ± 0.2V
Range suhu Operating Case 0° C ~ 85 ° C
